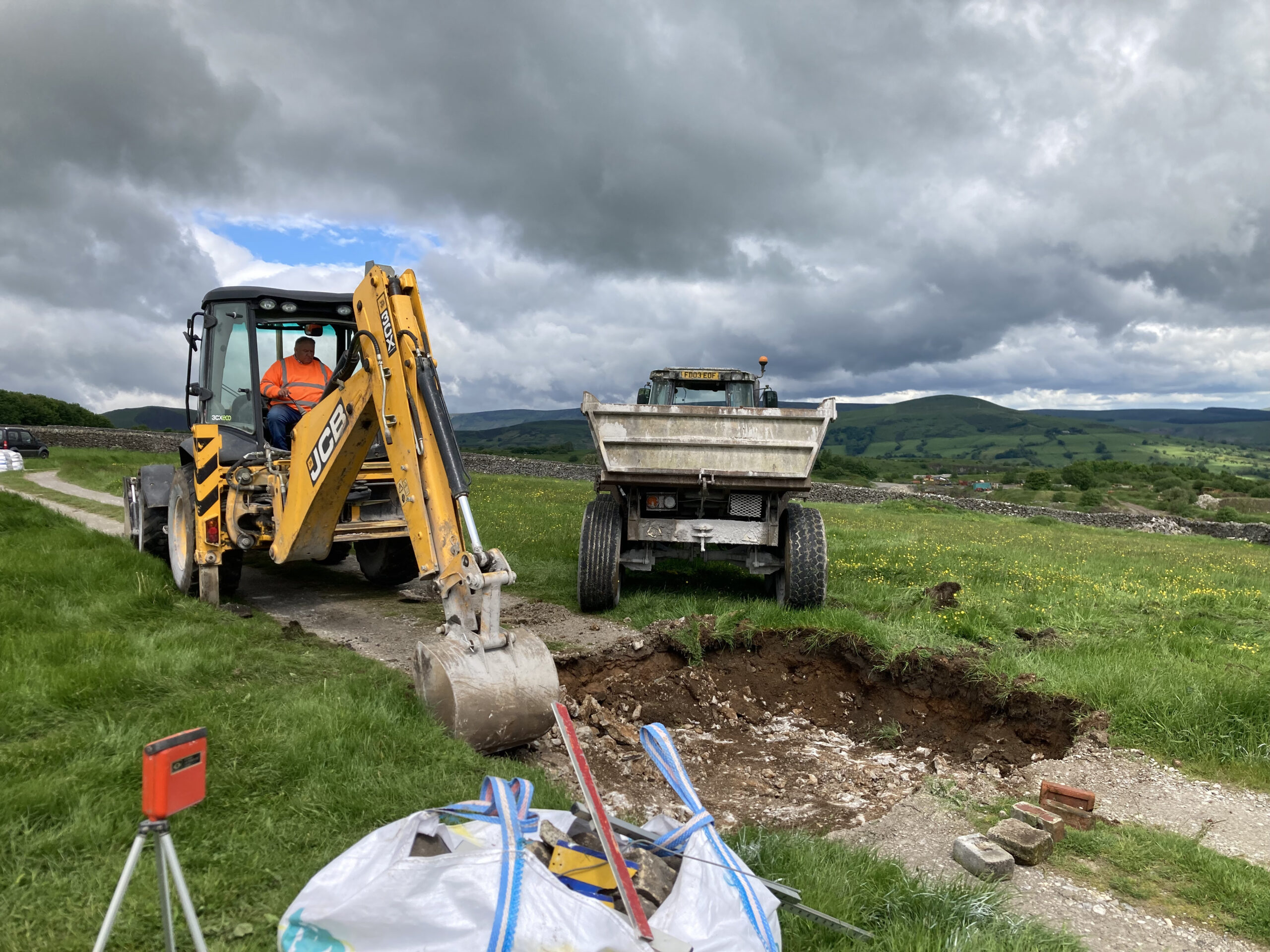

Step 1. Excavation
-
Dig a pit to the required depth to accommodate both the cattle grid and the sub-base material.
-
Ensure adequate drainage is considered for the pit if necessary. This can be a gully pot in the base of the grid leading to a near by ditch or soak away
-
Compact the sub-base material to provide a solid, stable foundation for the grid.
Step 2. Grid Placement
-

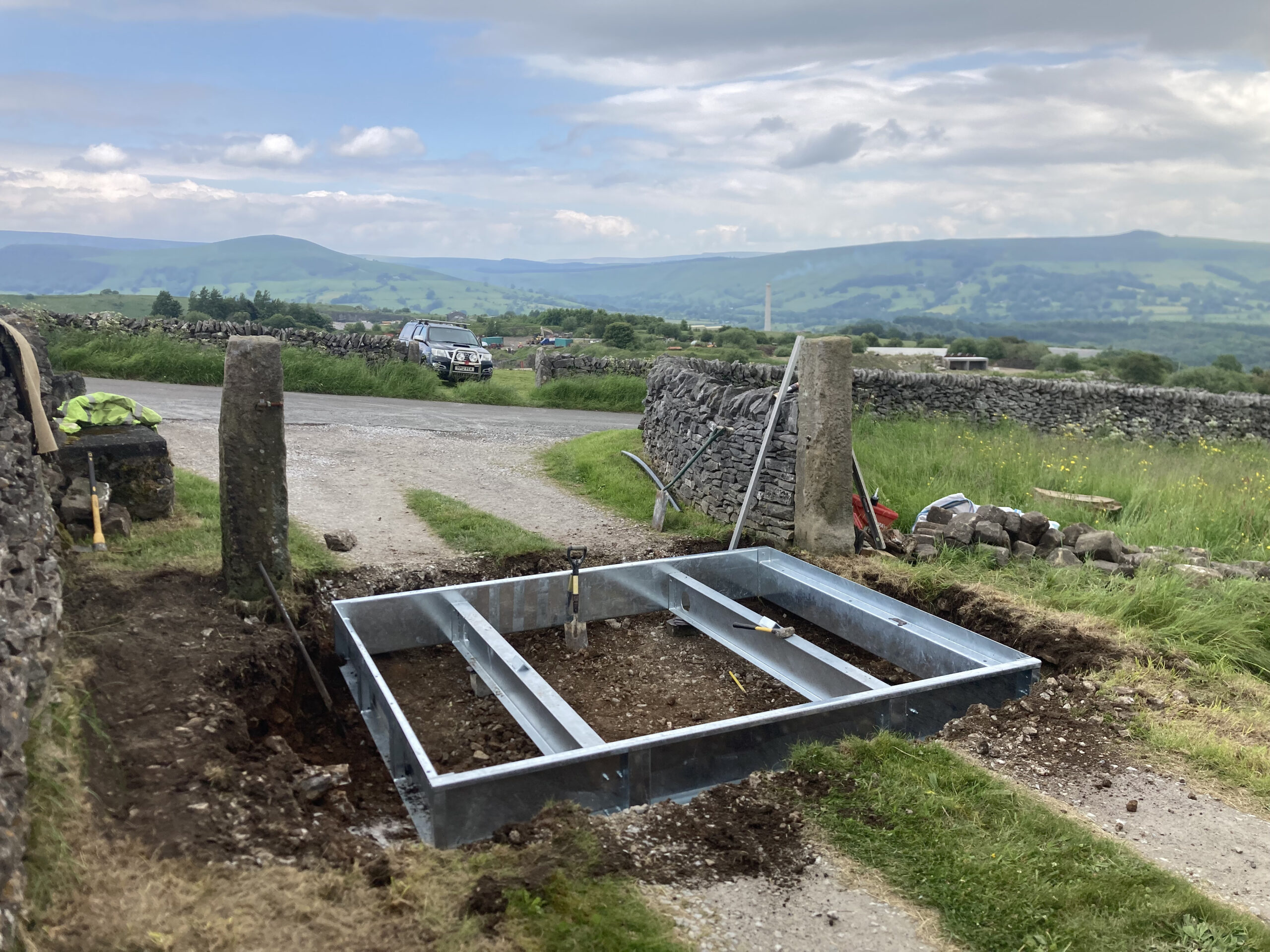

Carefully lower the base sections of the cattle grid into the prepared pit
-
Assemble the base sections within the pit and ensure they are level, making adjustments as needed
-

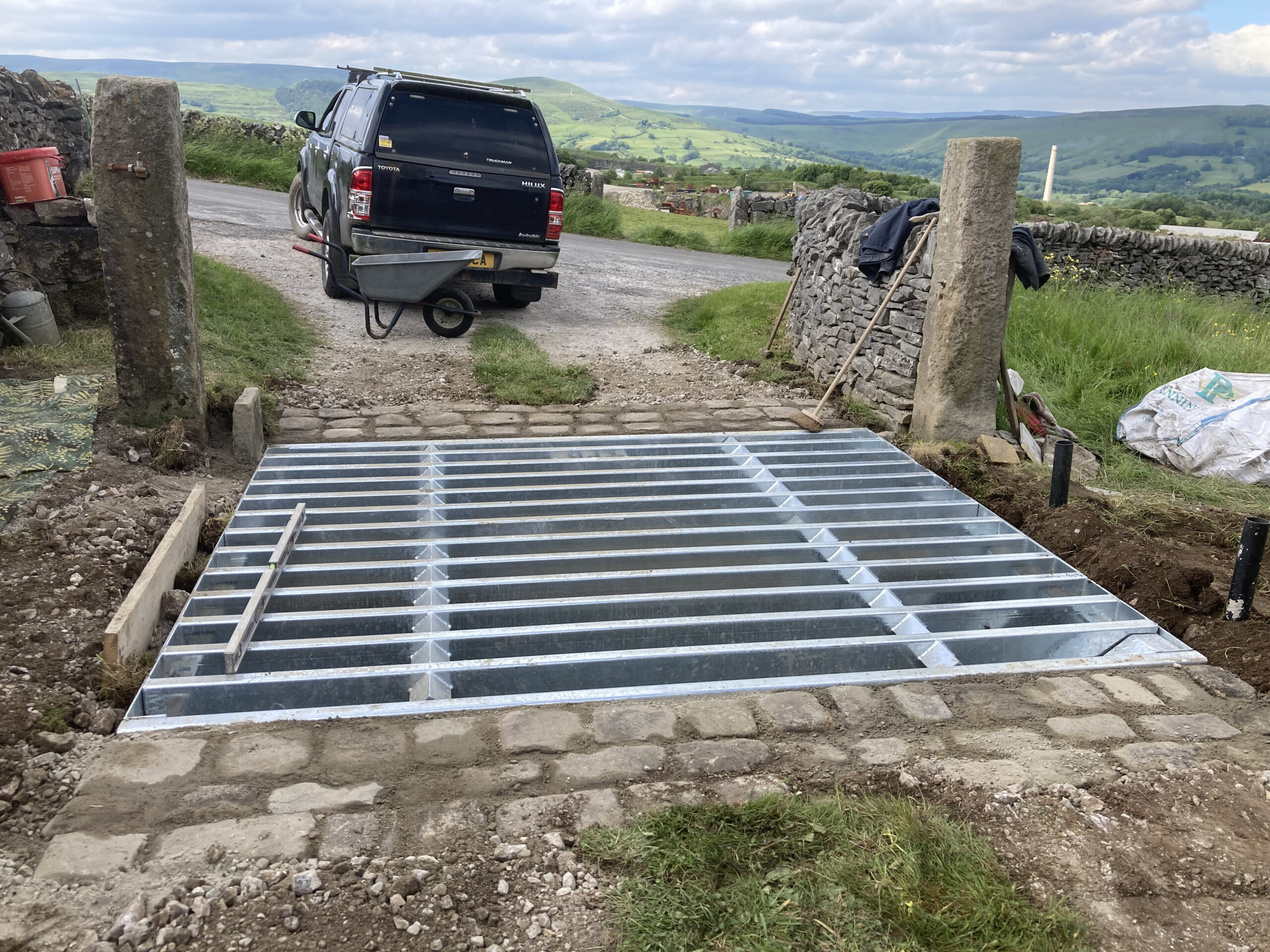

Once the base is level, lower the top bar sections into place and securely bolt them down to the base to complete the grid assembly.
Step 3. Backfilling
-
Backfill the pit around all four edges of the grid, securing it in place with appropriate material such as gravel or hardcore
-
Compact the backfill material to prevent any settling over time.
-
Optionally, pour concrete around the grid’s perimeter to prevent the surrounding road surface from sinking, especially at the leading edges, forming a ramp to the grid.
Step 4. Finishing Touches
-
If your grid includes removable side rails, insert them into the provided sockets on the base.
-
Conduct a final check for levelness and overall stability of the grid
Step 5. Optional Features
-
Install any additional features as required, such as stock-proof side rails, gates, or pedestrian grating.
-
Follow any specific installation instructions provided for these optional components.
Maintenance Considerations
-
Review the maintenance requirements provided in the product documentation.
-
Regularly inspect the cattle grid for signs of wear or damage to ensure ongoing performance and safety.

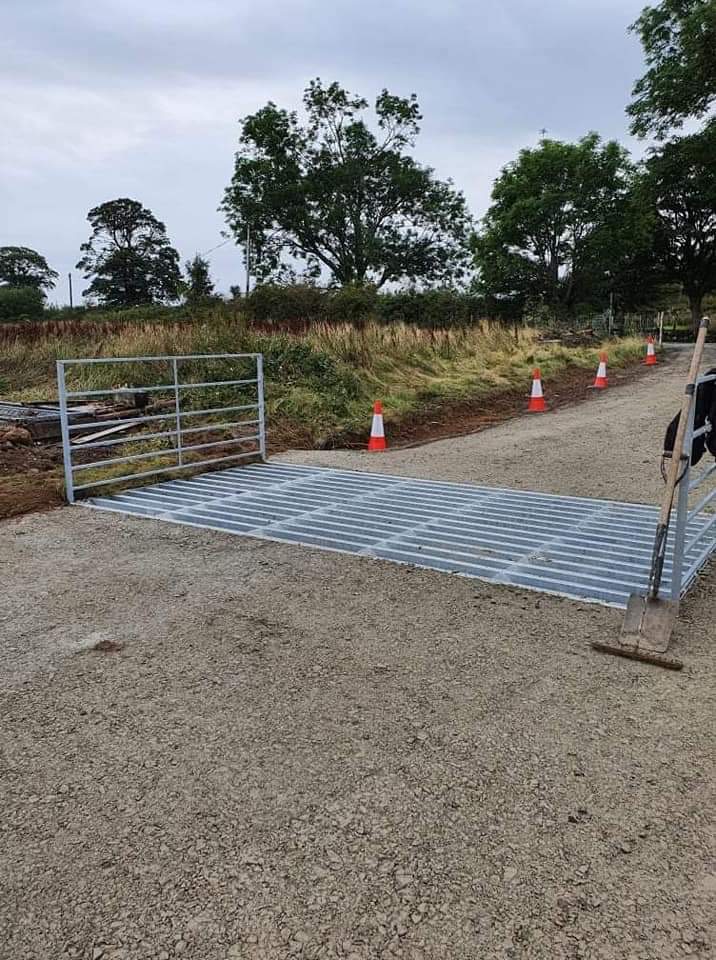

Congratulations!
You’ve successfully installed your cattle grid. If you need any additional assistance or have questions, don’t hesitate to contact us.
Note: These instructions are for installing our 50 and 80 ton models, for advice on installing our 120 ton highway grid, please get in touch.
